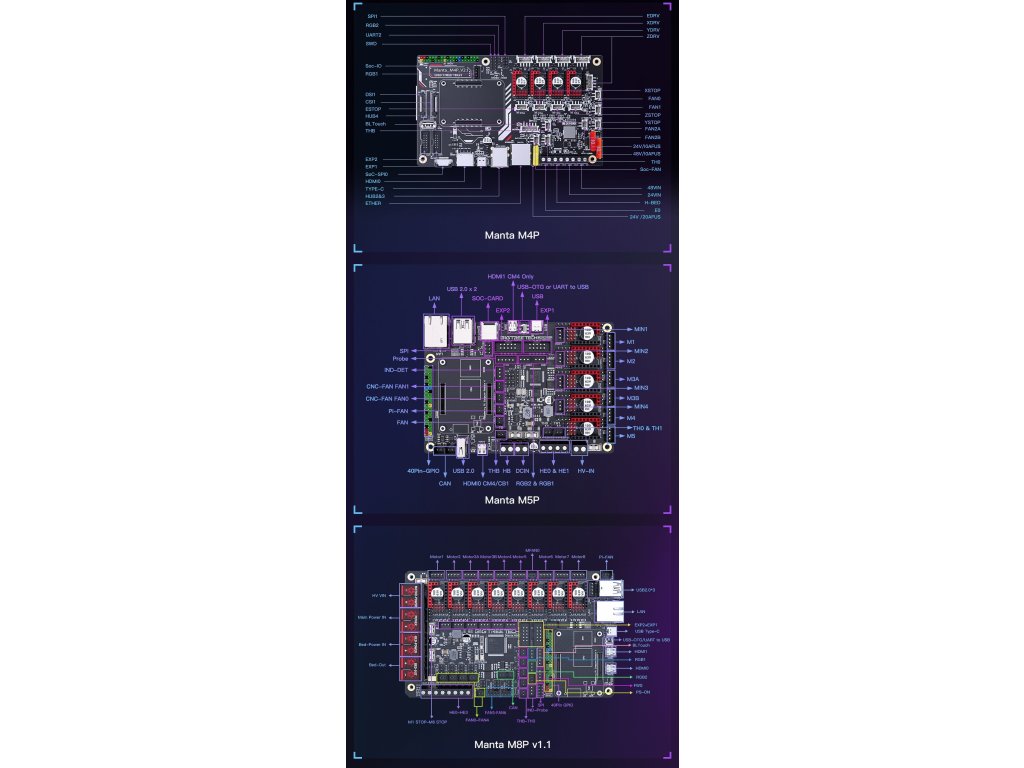

BTT Manta M5P Control Board

BIGTREETECH Manta M5P is a 32-bit motherboard specially designed for running Klipper. The board allows direct installation of BIGTREETECH CB1/Raspberry Pi CM4 for running Linux and Klipper. A special feature of this motherboard is that it has integrated BTB-Headers, which make it easier for customers to choose between CM4 or another solution. The main goal is to compensate for the shortage of the Raspberry Pi CM4 board.

Main parameters:

✅ Featuring a 32-bit 64MHz ARM® Cortex-M0+ STM32G0B1RET6 chip, more stable and faster.

✅ Designed with the same connector as Raspberry Pi, ensuring compatibility with all versions of CM4, including CB1. Screw-mounted installation is also available.

✅ It has ample expansion ports and can support various expansion modules, such as BL Touch, LCD screen, RGB light, automatic shutdown, etc.

✅ The TPS5450-5A power chip's 5A output perfectly meets the power needs of Raspberry Pi.

✅ Selectable CNC fan voltage: 5V/12V/24V.

✅ eFuse circuit protection is added. When overloaded, it will disconnect faster and automatically reset if the overload subsides, significantly reducing motherboard damage caused by short circuits or ignition.

✅ Dedicated Can Bus port can be connected to EBB CAN, simplifying wiring and ensuring strong anti-interference capability.

M5P and CB1 can be the best choice for Voron V0, Ender 3, etc.

Manufacturer documentation
