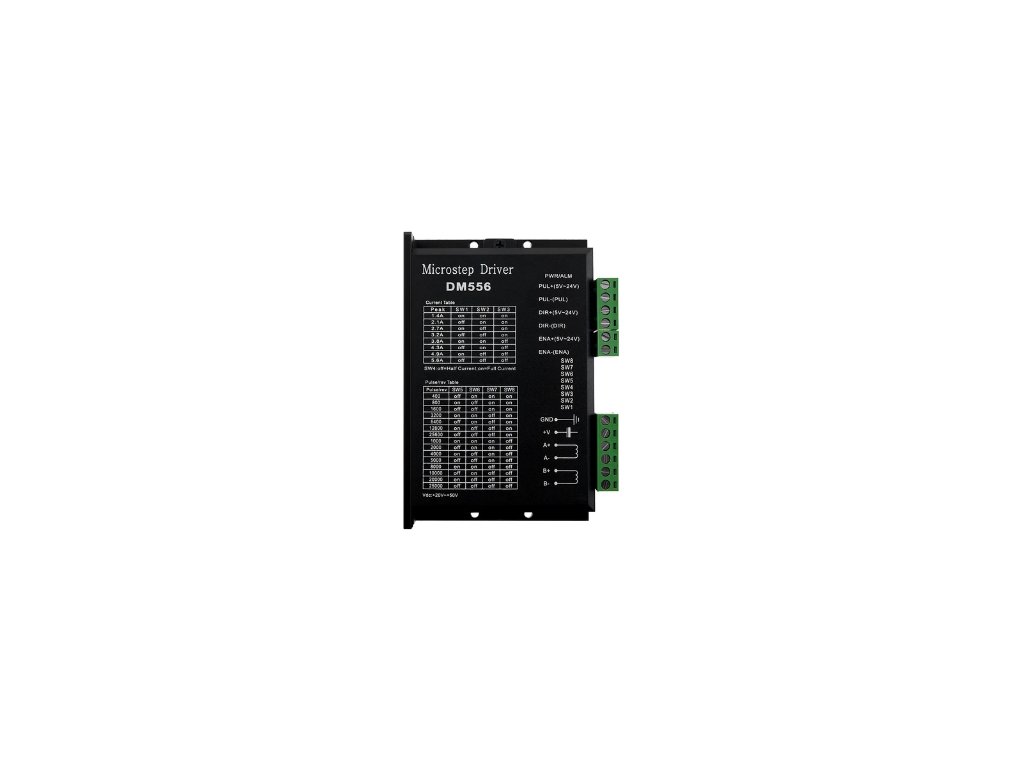

DM556 5.6A - Stepper Motor Driver
| Category: | Control boards, drivers |
|---|

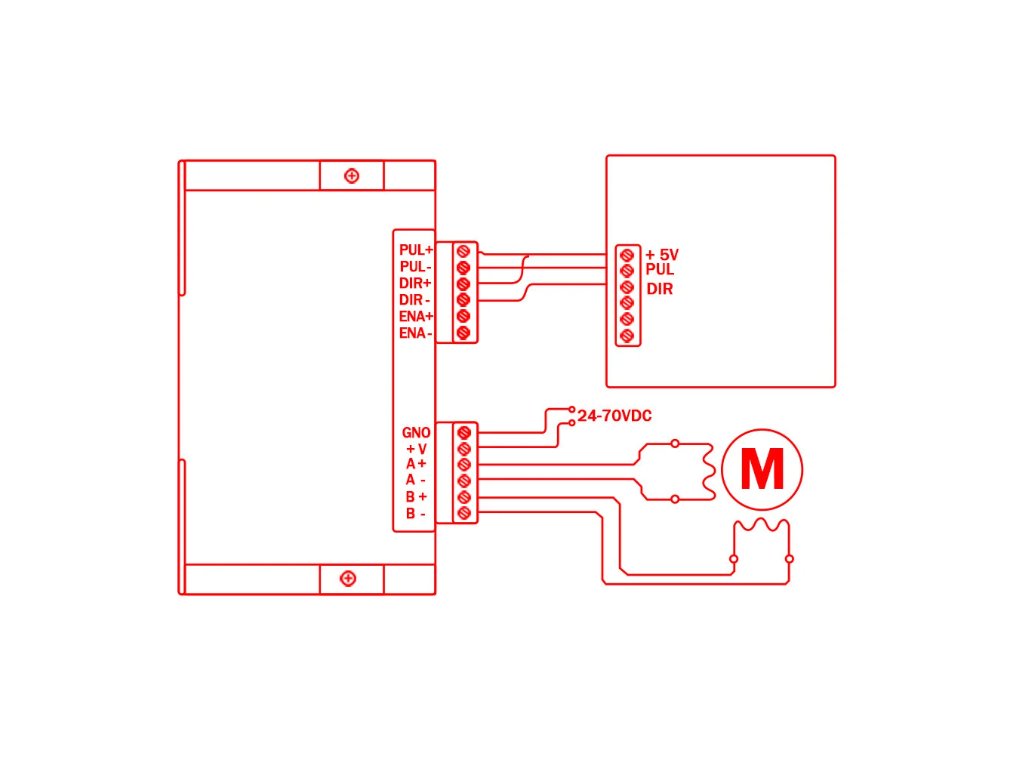

The driver is designed for controlling a single bipolar stepper motor with PUL and DIR signals. It is intended for smaller CNC machines
- Supply voltage range: 24-50V DC
- Maximum output current: 4A, peak current 5.6A

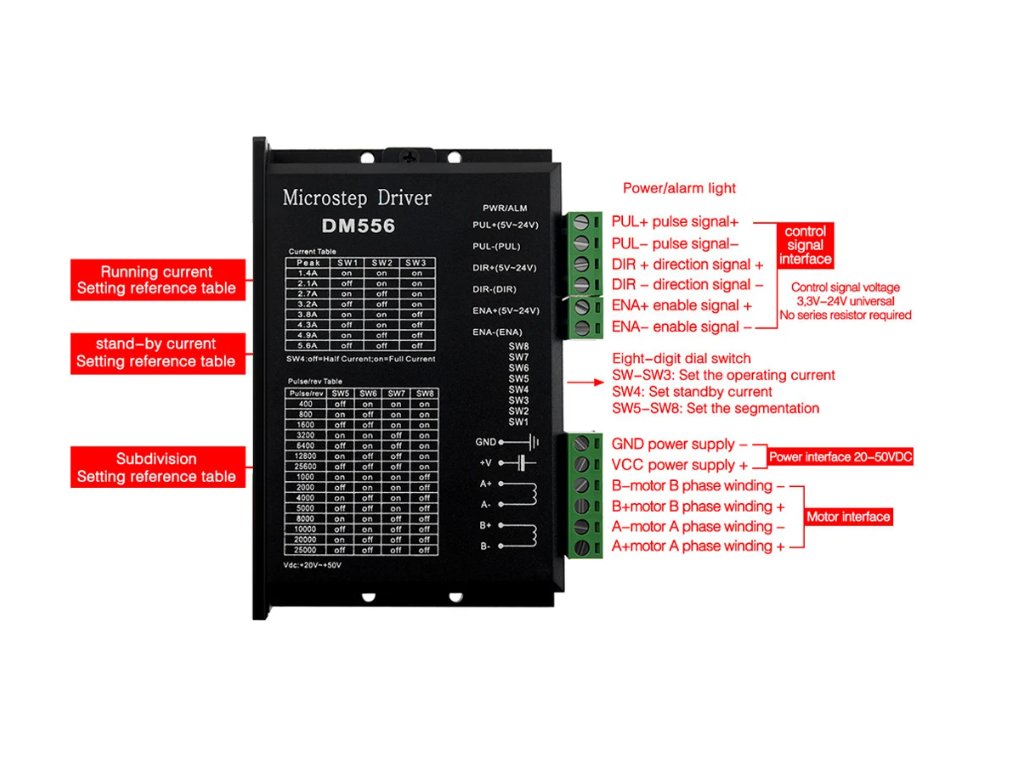

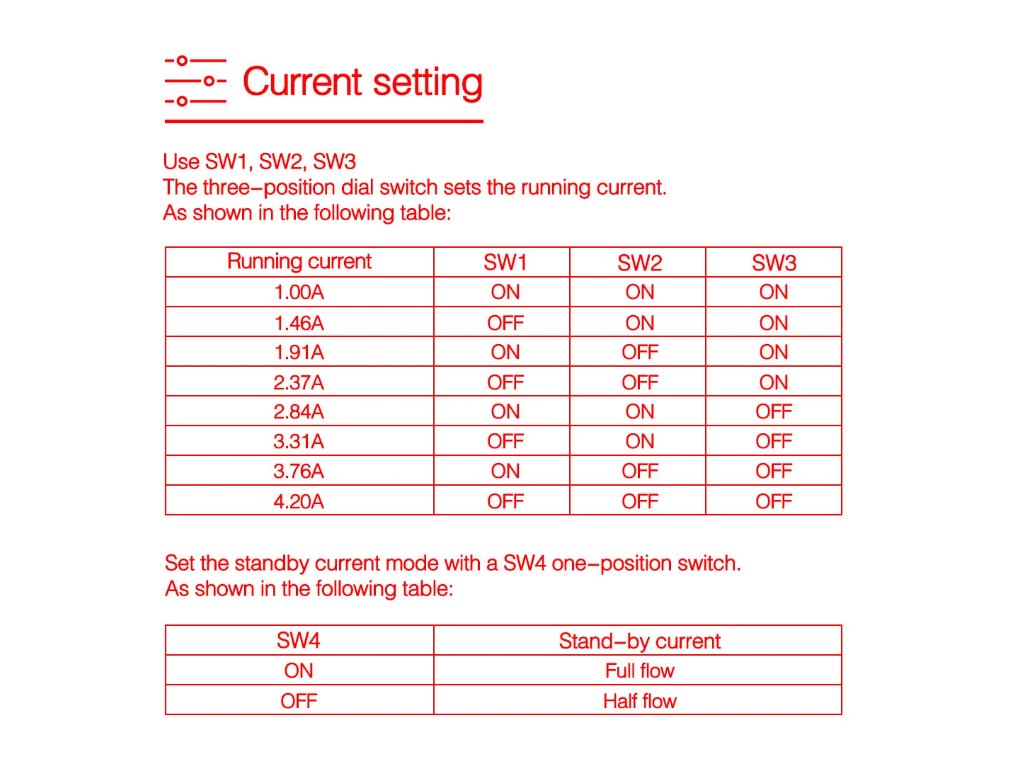

- Current and stepping adjustment using switches
- Undervoltage, overcurrent, thermal, and output short-circuit protection
- Microstepping: 400-25600
- Maximum input STEP frequency: 200kHz
Included in delivery:
- 1pc DM556 Driver for stepper motors 4A 50V
Note:
- This product is not a standalone functional unit and may require professional installation.
