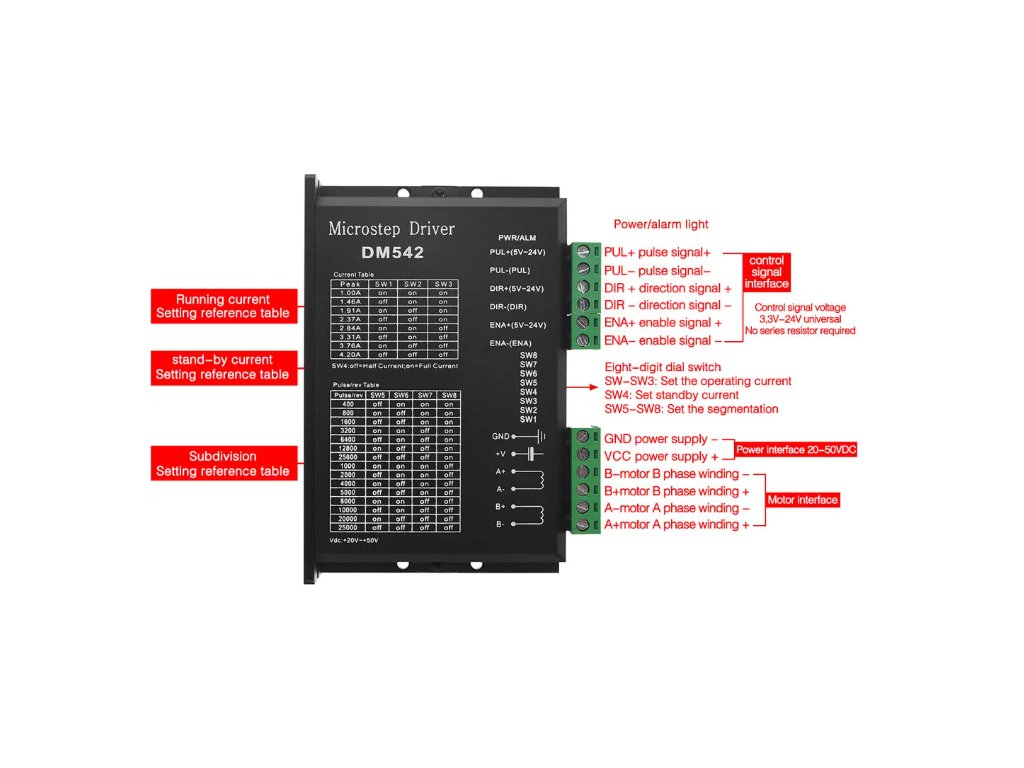

DM542 4.2A - Stepper Motor Driver
| Category: | Control boards, drivers |
|---|

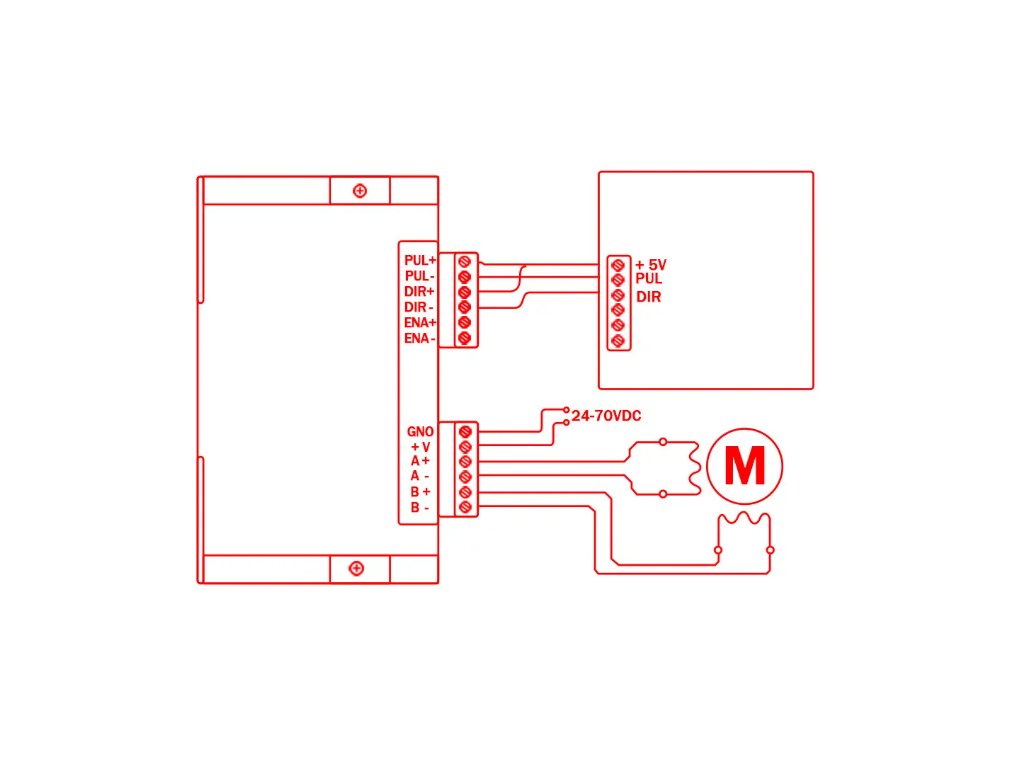

The driver is designed for controlling a single bipolar stepper motor with PUL and DIR signals. It is intended for smaller CNC machines
- Power supply voltage range: 18-50V DC
- Maximum output current: 3A, peak 4.2A

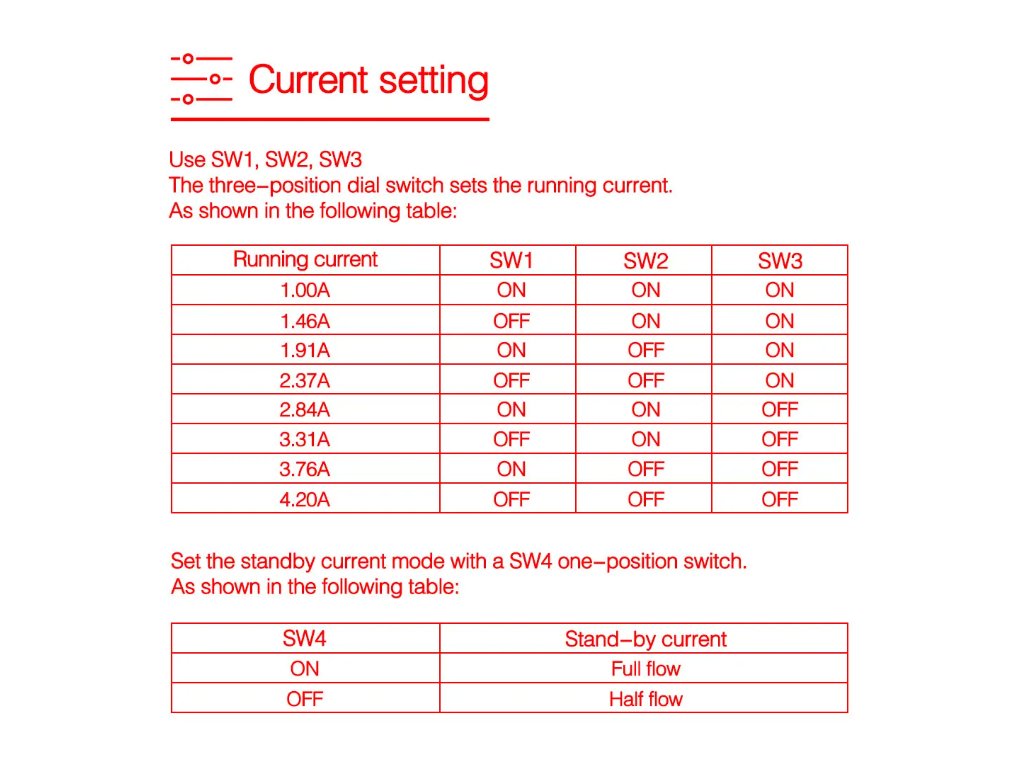

- Current and stepping adjustment using switches
- Undervoltage, overcurrent, thermal, and output short-circuit protection
- Microstepping: 400-25600
- Control voltage range: 5-24V DC
- Maximum input STEP frequency: 200kHz
Included in delivery:

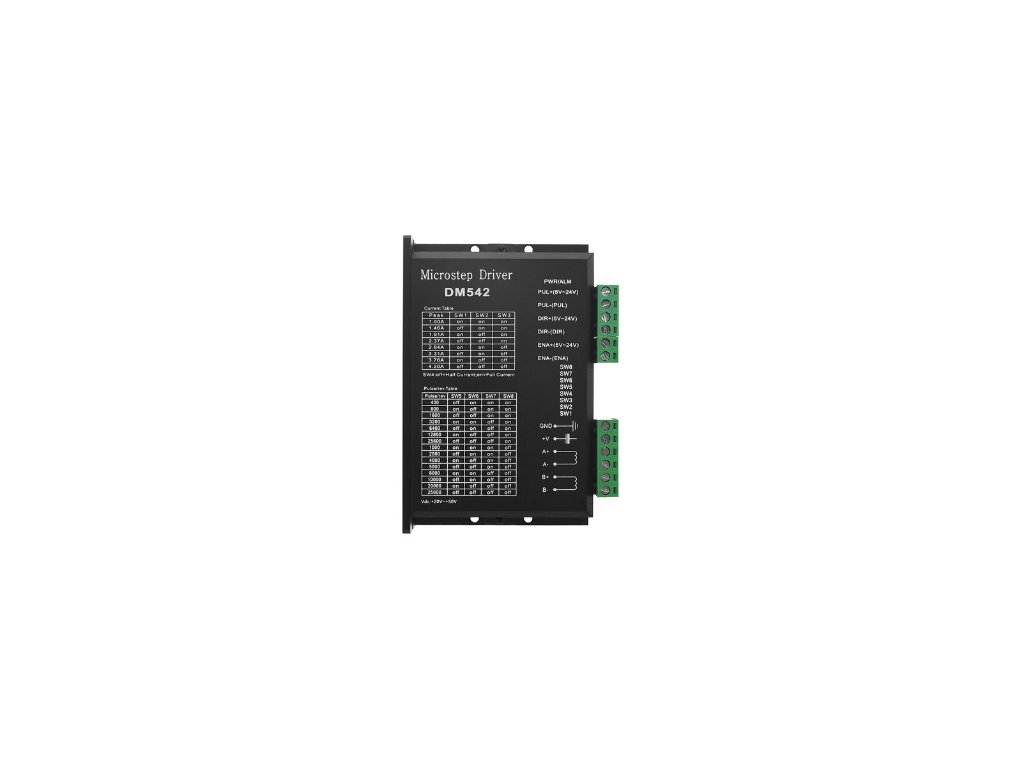

- 1pc DM542 Stepper Motor Driver - 3A 50V
Note:
- This product is not a standalone functional unit and may require professional installation.
