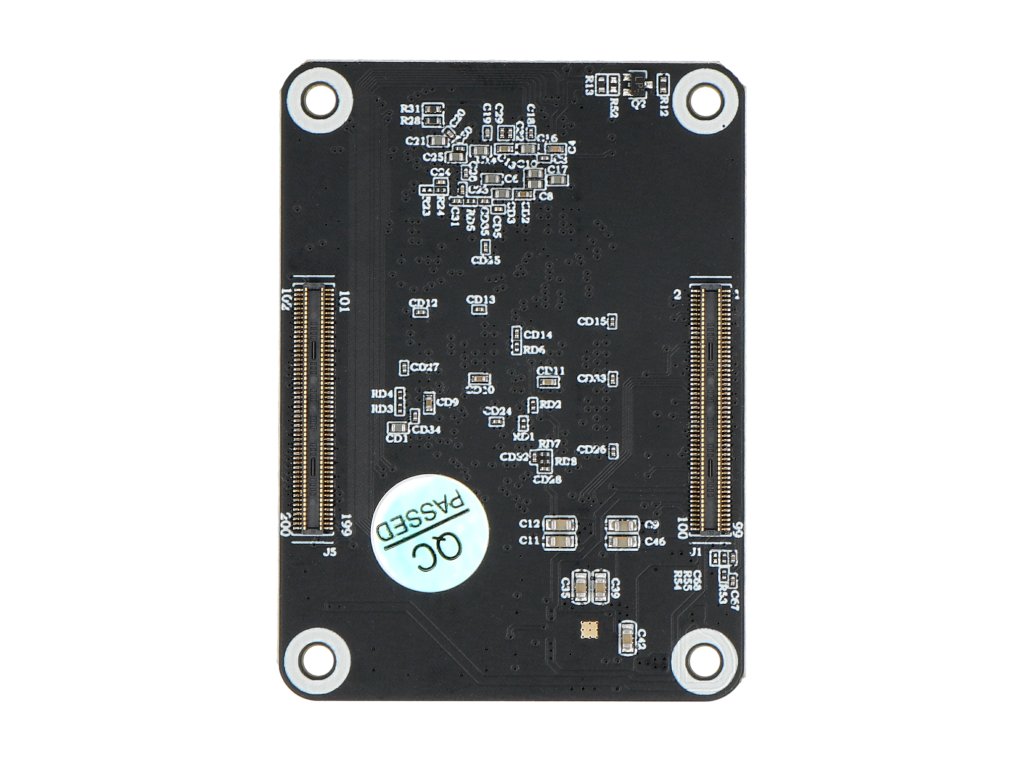

BTT CB1 V2.2 - Microcomputer
| Category: | Control boards, drivers |
|---|---|
| The item has been sold out… | |
BIGTREETECH CB1 was launched to provide a solution for the shortage of Raspberry PI CM4. It outputs signals to the mainboard via a fast and convenient dual 100-pin micro BTB connector header, including 100M Ethernet, HDMI, etc. A built-in 2.4G WiFi is also available.
With the use of an adapter (not included), the CB1 can be made into a replacement for Raspberry PI4B.
Specifications:
- Processor: Allwinner H616, Quad-Core ARM Cortex-A53 @ 1.5 GHz
- GPU: Mali G31 MP2, supporting OpenGL3.2
- RAM: 1GB DDR3 SDRAM
- eMMC Memory: None
- Power Supply Voltage: 5V ±5% / 2A
- Output voltage:
- 3.3V ±2% / 100mA
- 1.8V ±2% / 100mA
- Wireless Communication: WiFi 2.4 GHz / 802.11 b/g/n
- Display: HDMI 2.0A compatible, supports 4K displays
- Connectivity: USB 2.0 interface, supports Ethernet 100Mbps + WiFi 100Mbps
Kit contents:

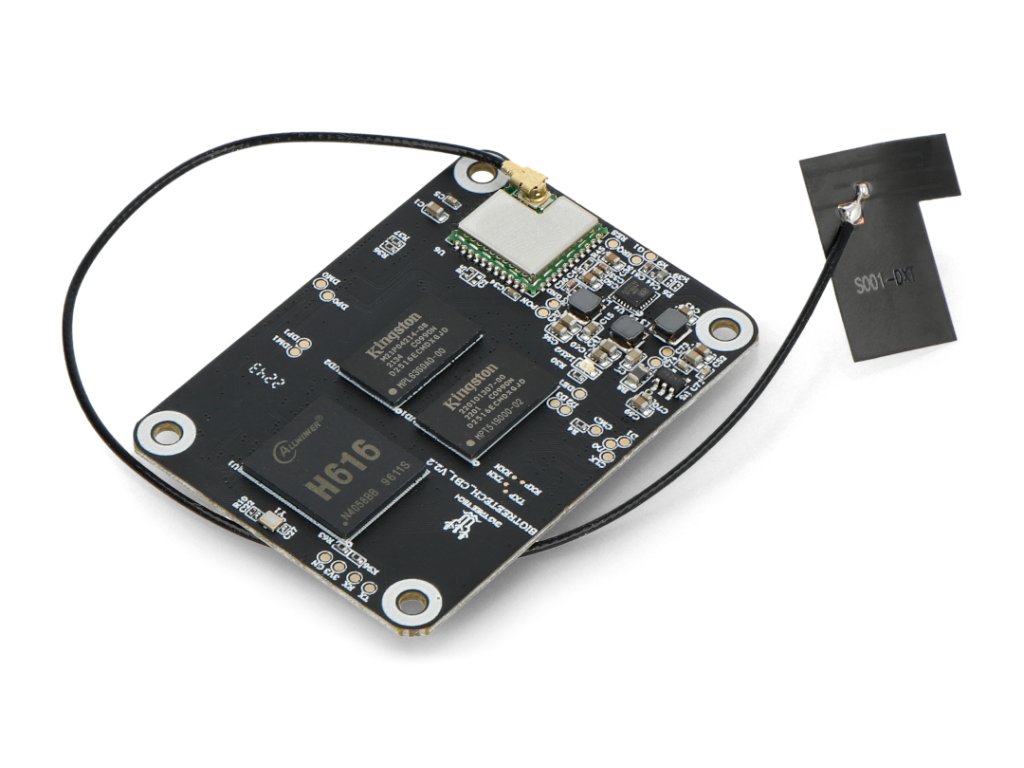

- Bigtreetech CB1 V2.2 1 GB RAM control module - for Bigtreetech Manta mainboards
- WiFi antenna
