BIGTREETECH TFT35 SPI V2.2 Display
| Category: | Displays |
|---|

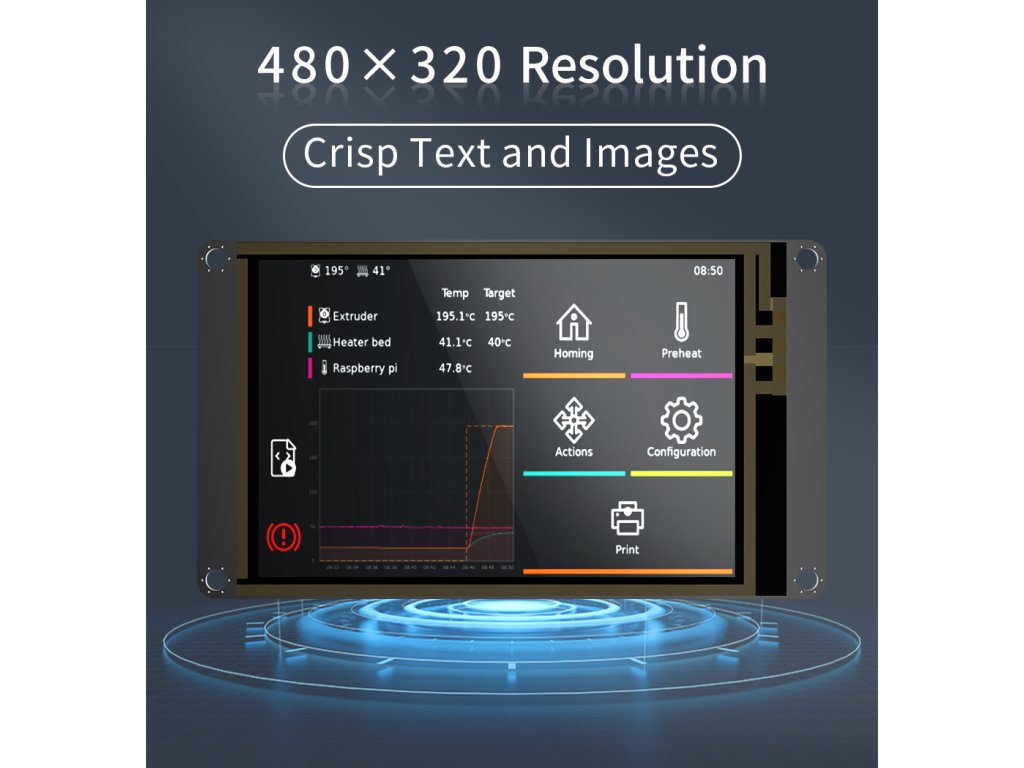

BIGTREETECH TFT35 SPI V2.1 is a medium-sized and easy-to-read touch display for 3D printers, developed by Shenzhen Big Tree Technology Co., Ltd., a 3D printing company.

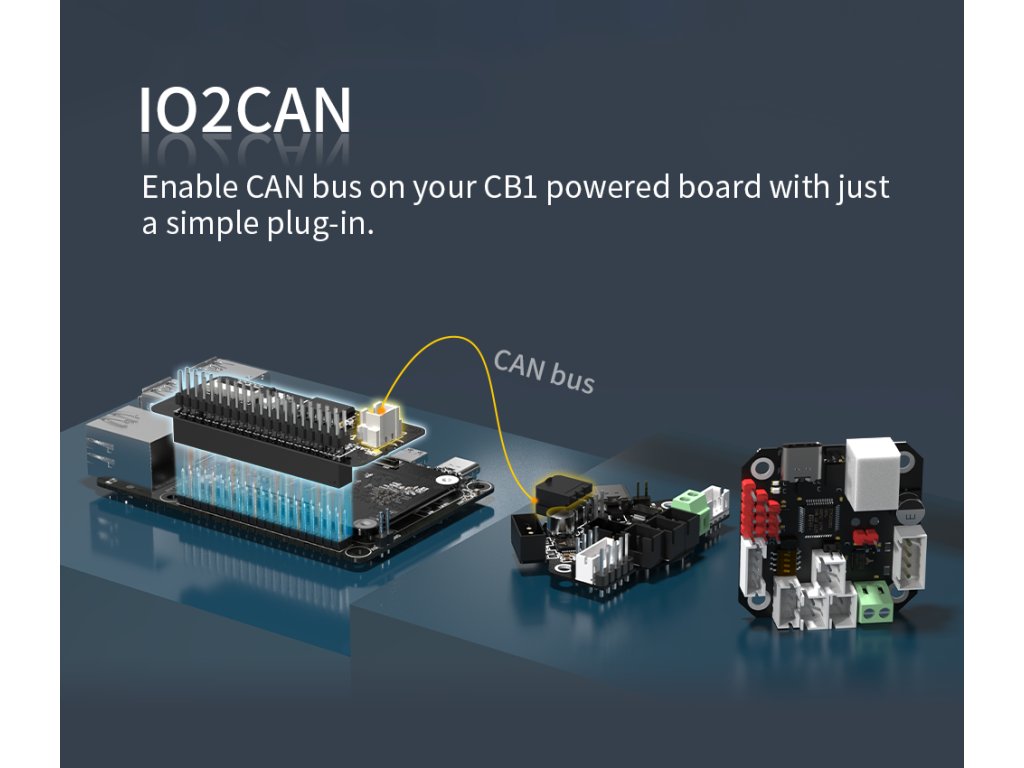

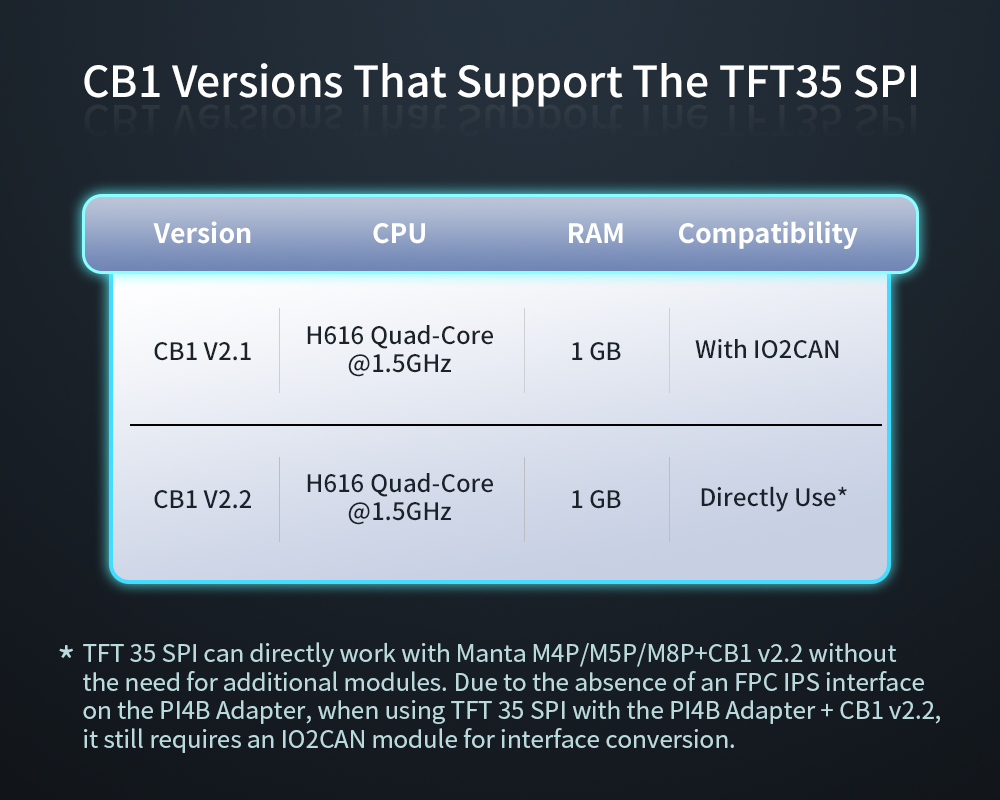

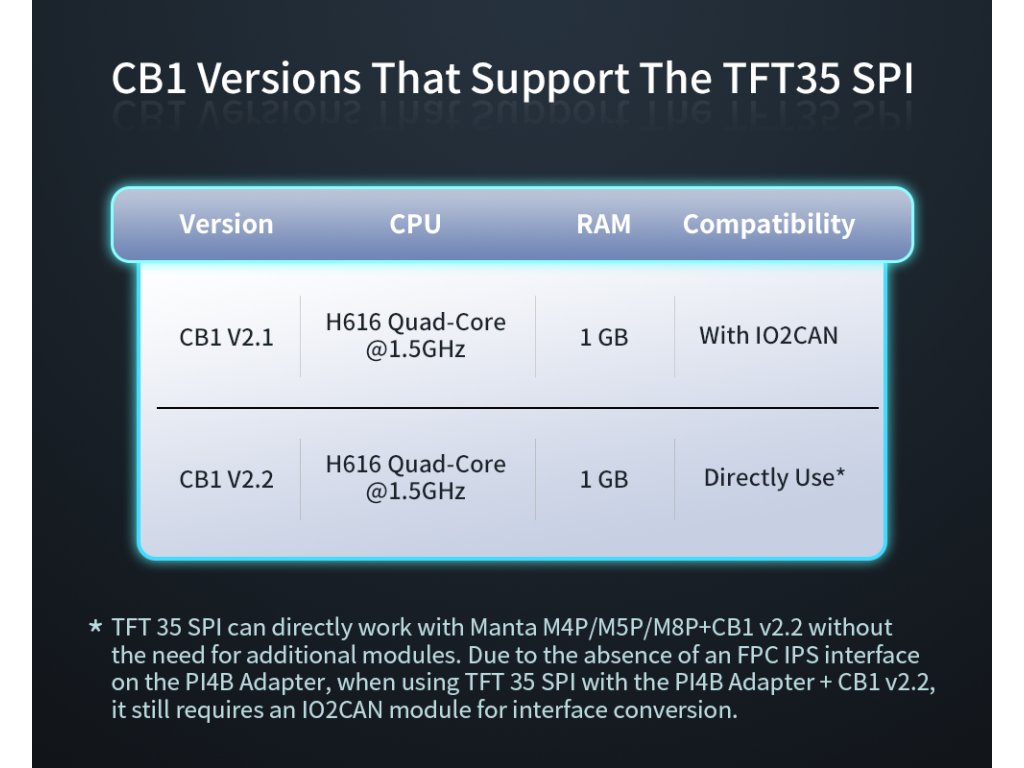

This display can only be used for MANTA boards with CB1 V2.2 (for CB1 V2.2, IO2CAN V1.0 must be used)

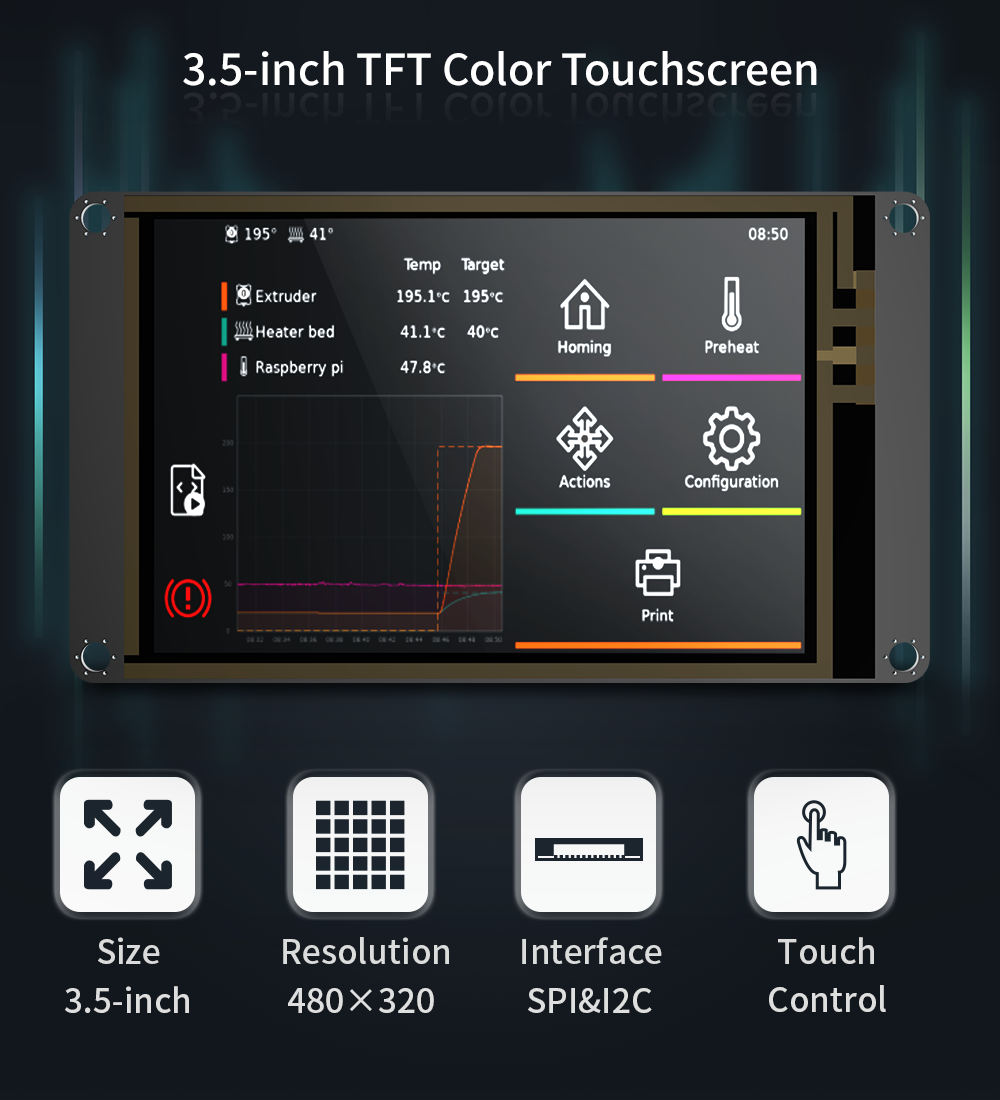

SPI is used for the LCD display and I2C is used for touch. The touch display is controlled by a chip on the motherboard. This significantly reduces the price of the display.

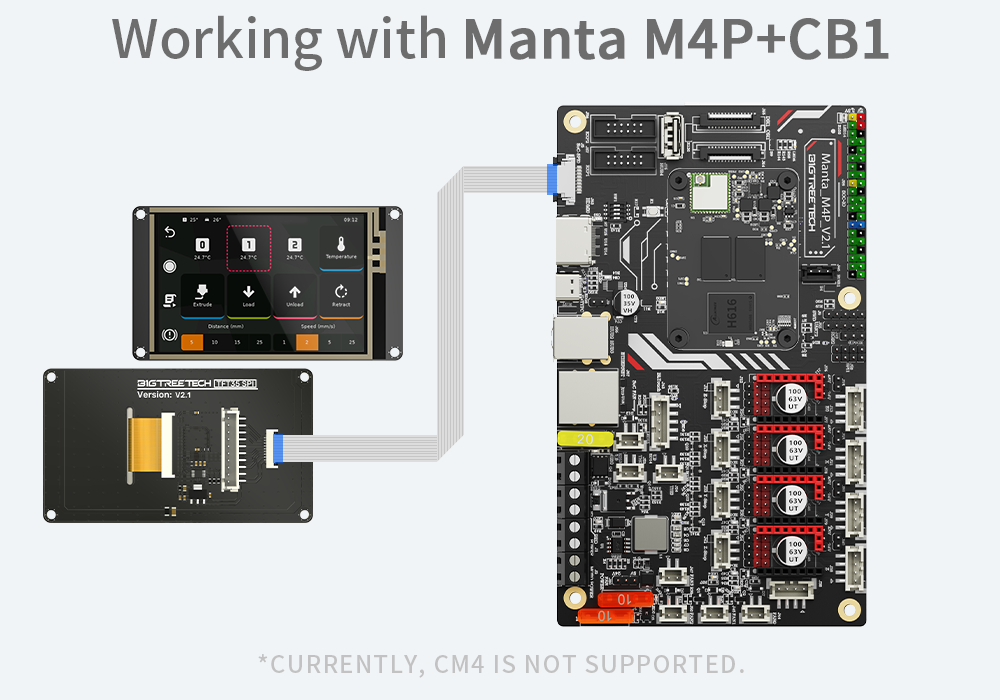

It features an FPC port for connection. It connects to the motherboard using an FPC cable, which is simple and convenient.
XH2.54 Terminal. Designed with an XH2.54 terminal, which can communicate with the board via the terminal.
Indicator Light:
When the motherboard is powered on, the red D2 power indicator lights up, indicating that the power is working normally.
