BIGTREETECH Screen - HDMI5 V1.1
| Category: | Displays |
|---|
Product Description:

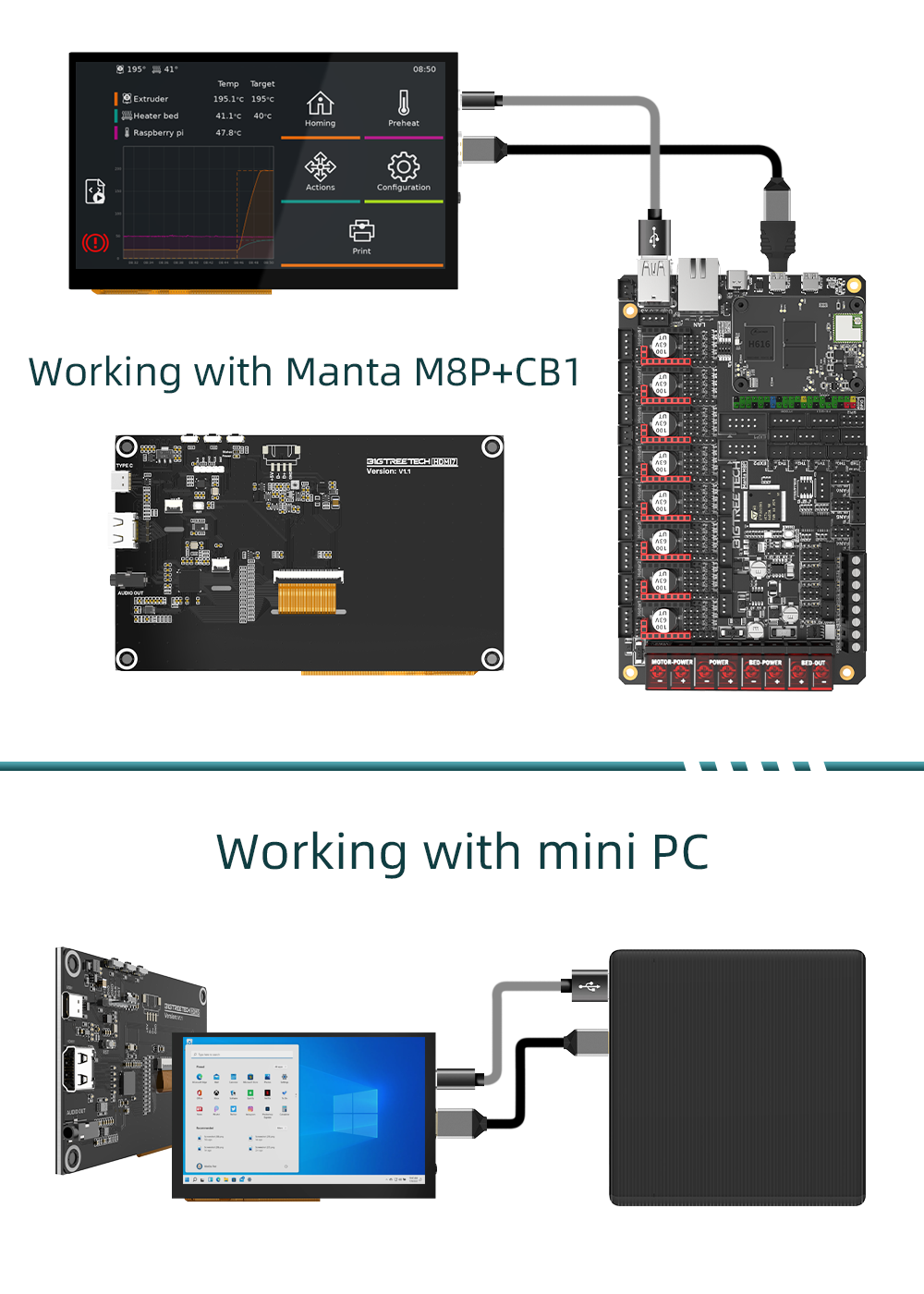

HDMI 5 and HDMI 7 were developed by the BIQU technical team specifically for users of 3D printers using the Klipper system. It can work with Raspberry Pi4, Manta M8P+CB1, Manta M4P+CB1, and other mini PCs.

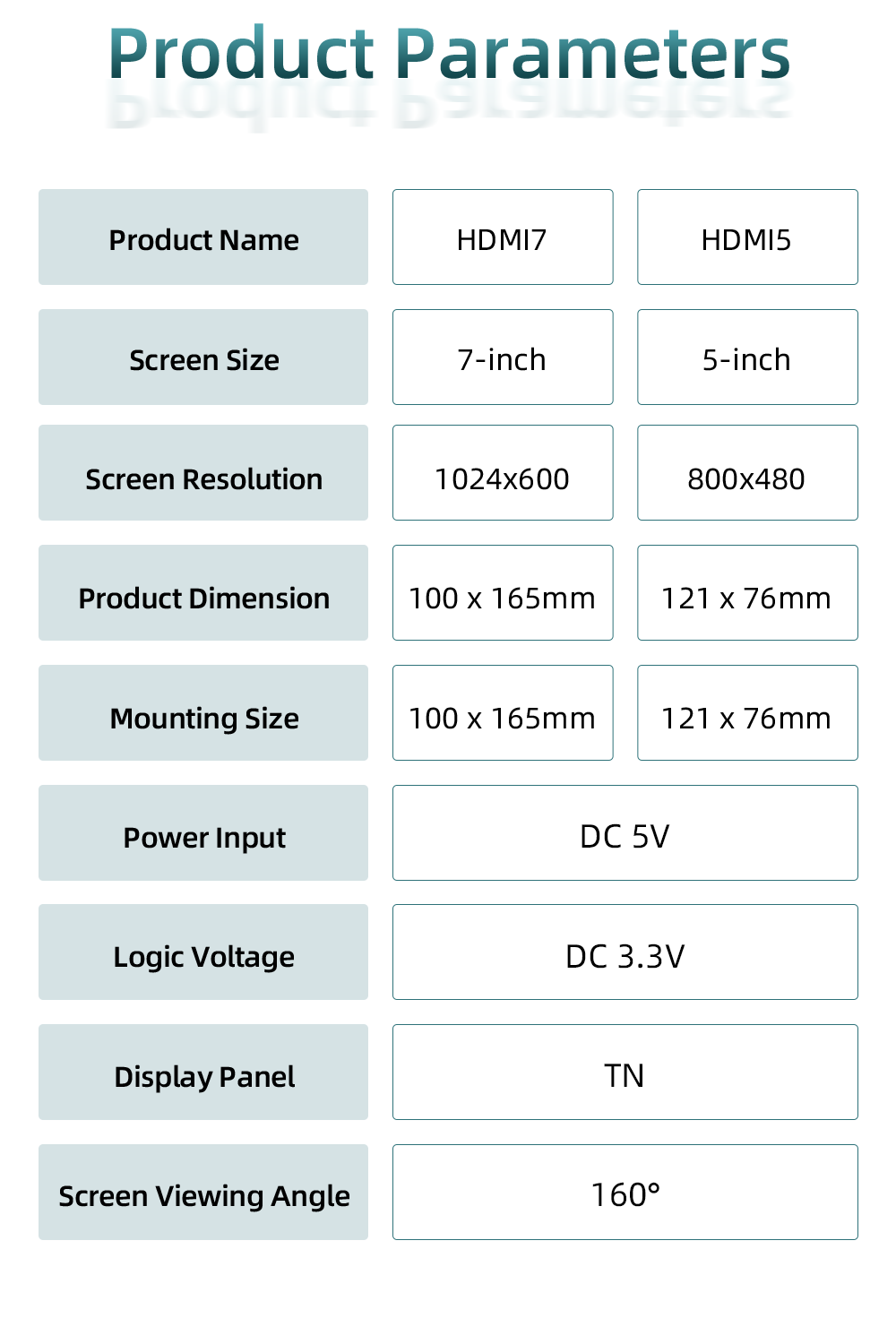

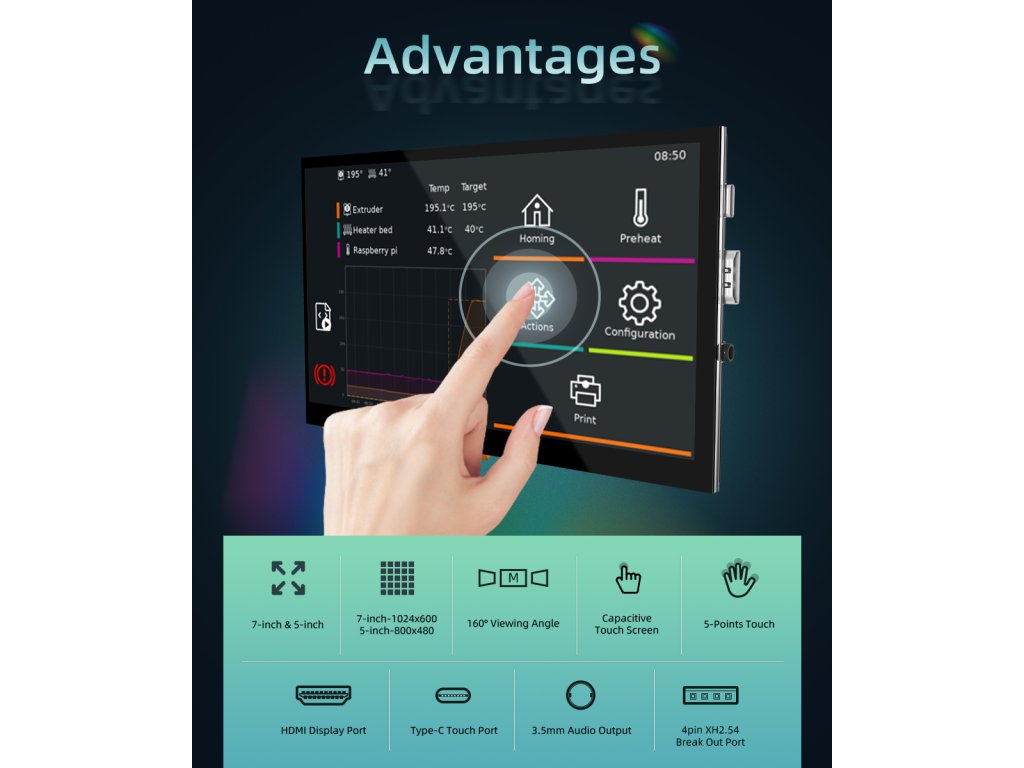

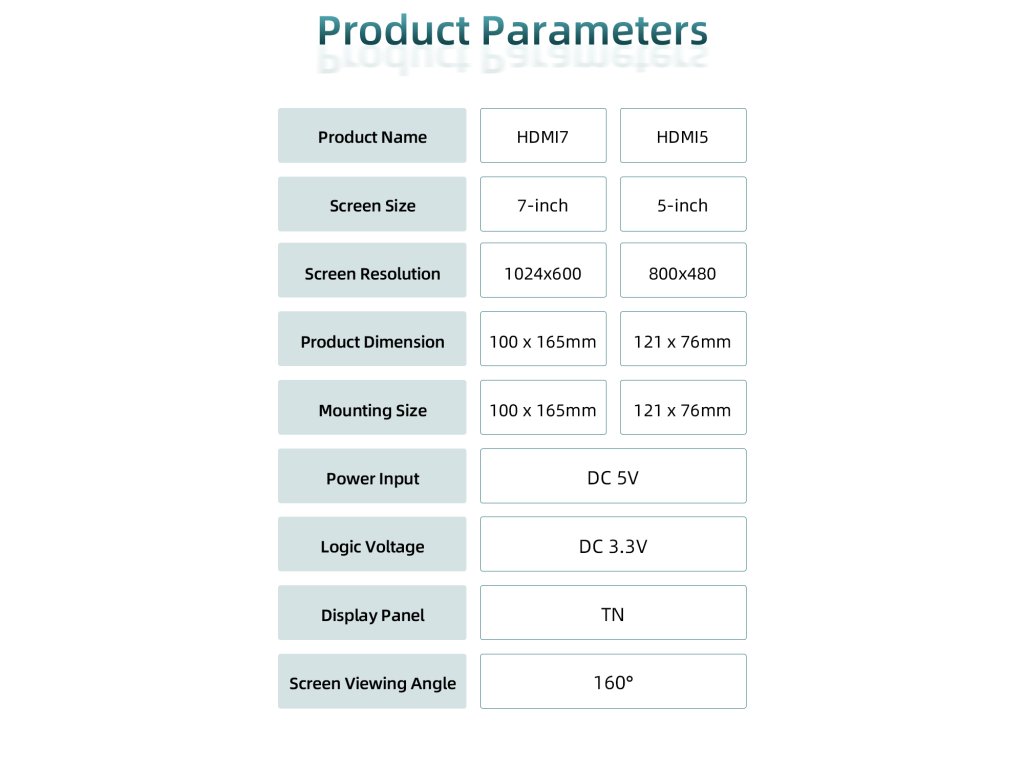

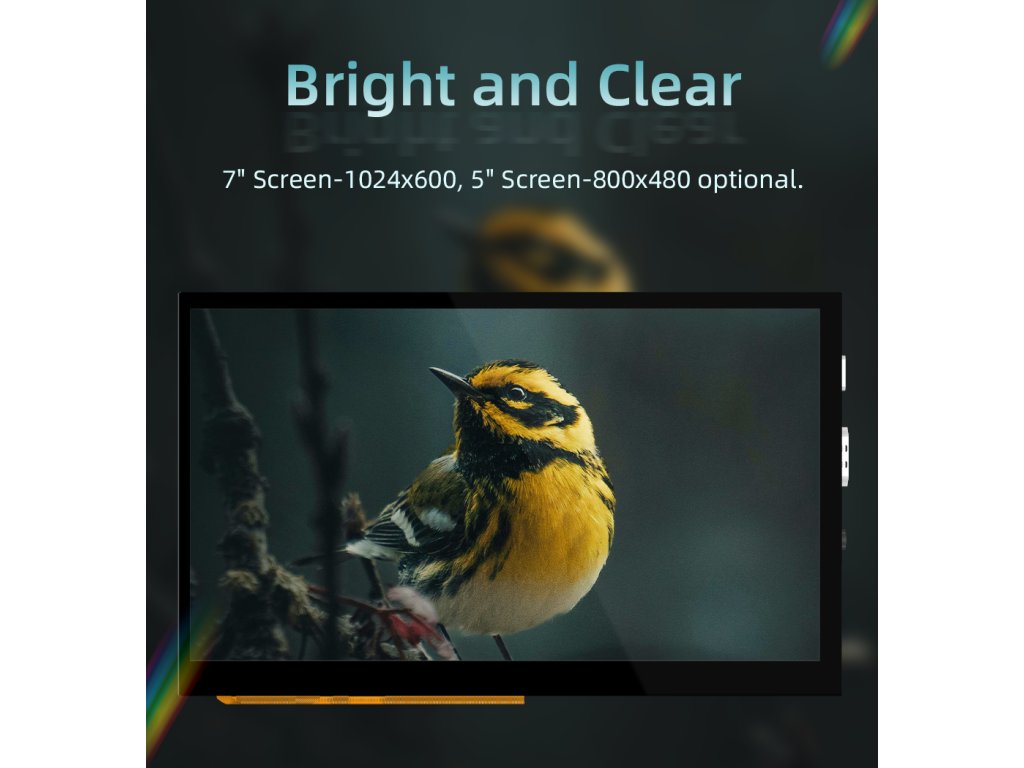

The resolution of the 7-inch screen is 1024 x 600, while the 5-inch screen is 800 x 480. The IPS capacitive touch screen supports 5-point touch.

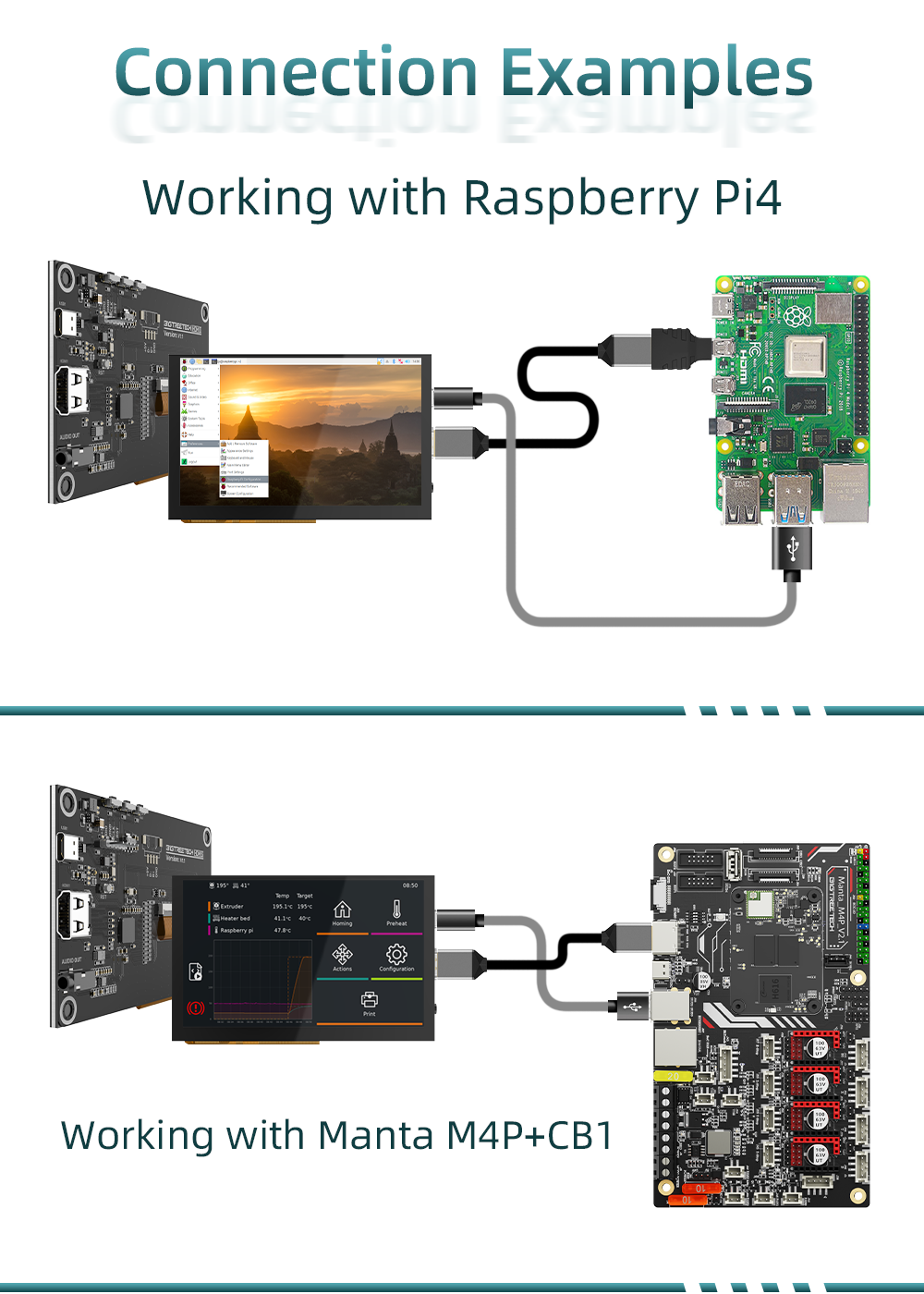

Plug and play. Simply connect the screen to the device via the HDMI port and supply power to the Type-C port to make it work without installing drivers. This screen is great for 3D printer users to use for their projects, and it can be perfectly compatible with the Manta series motherboard and CB1.
Adjustable brightness and display direction. You can increase the brightness using button Ks1, decrease it with Ks3, and use Ks2 to set the display direction by 180°

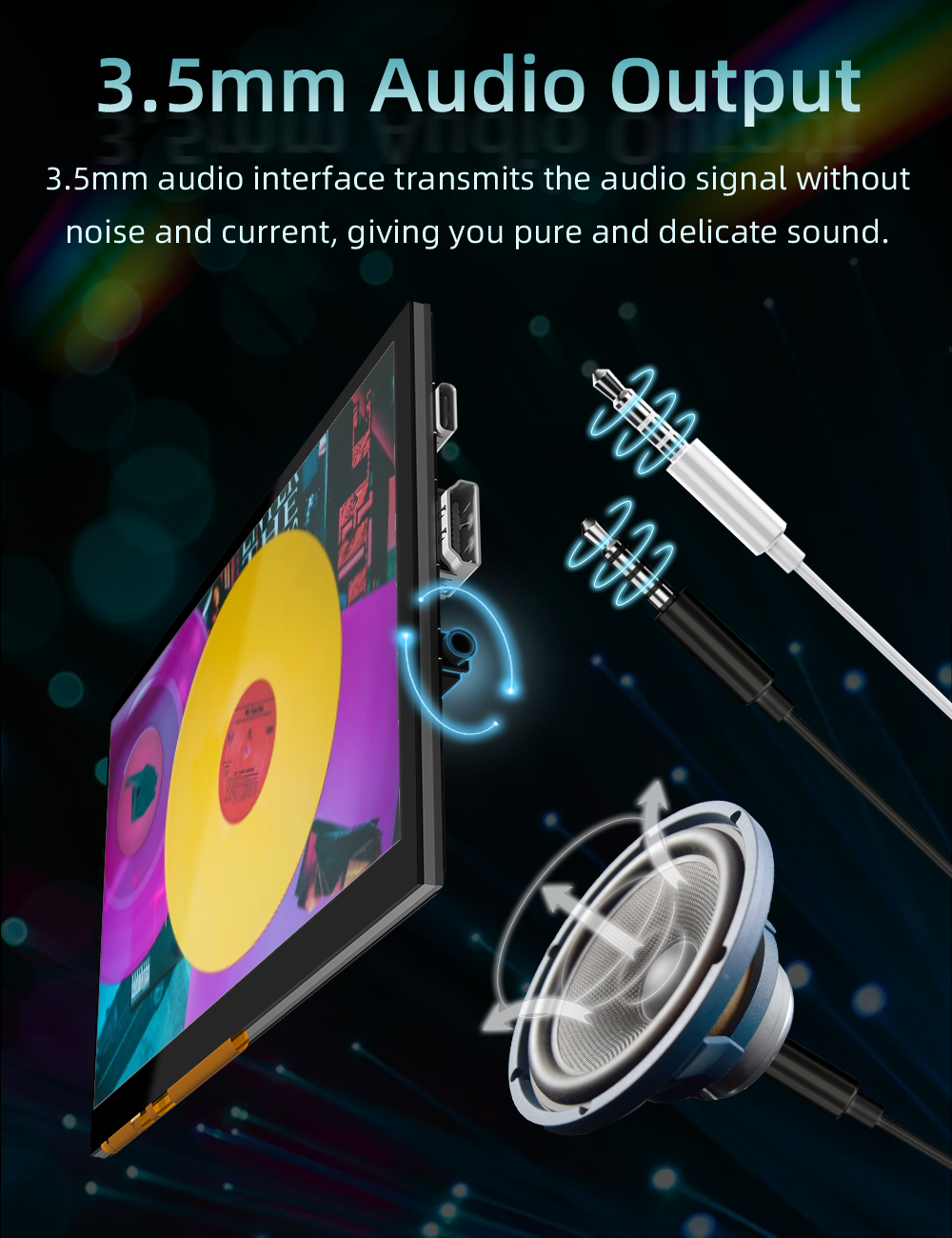

Audio output support. It has a built-in audio decoding circuit and supports 3.5mm headphone audio output. The 3.5mm audio interface transmits the audio signal without noise or electrical interference, giving you a clear and smooth sound.

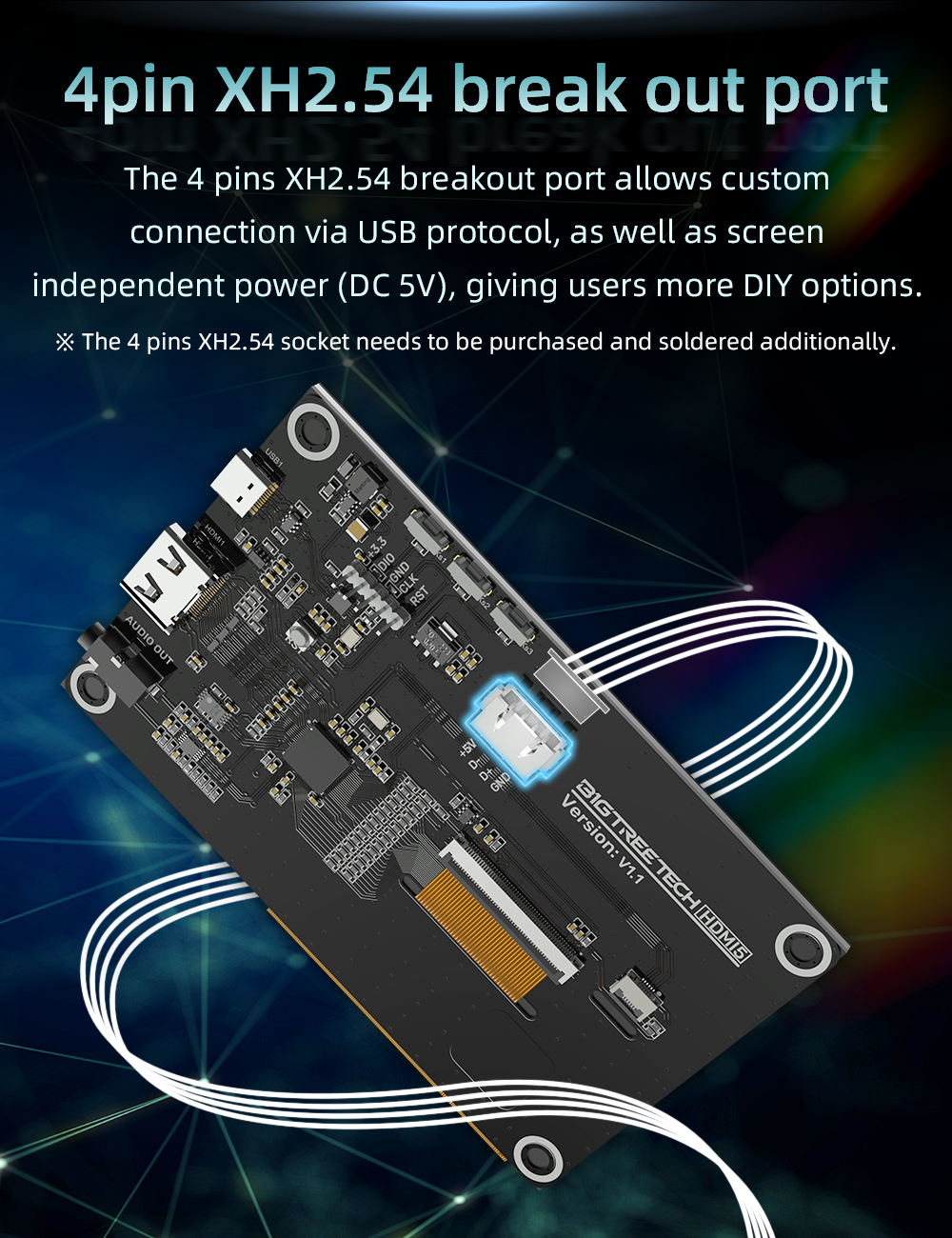

4-pin XH2.54 breakout port. The 4-pin XH2.54 breakout port allows custom connections via USB protocol, as well as power supply independent of the screen (DC 5V), providing users with more DIY options.
